Vehicle Routing Problem (VRP)

VRP

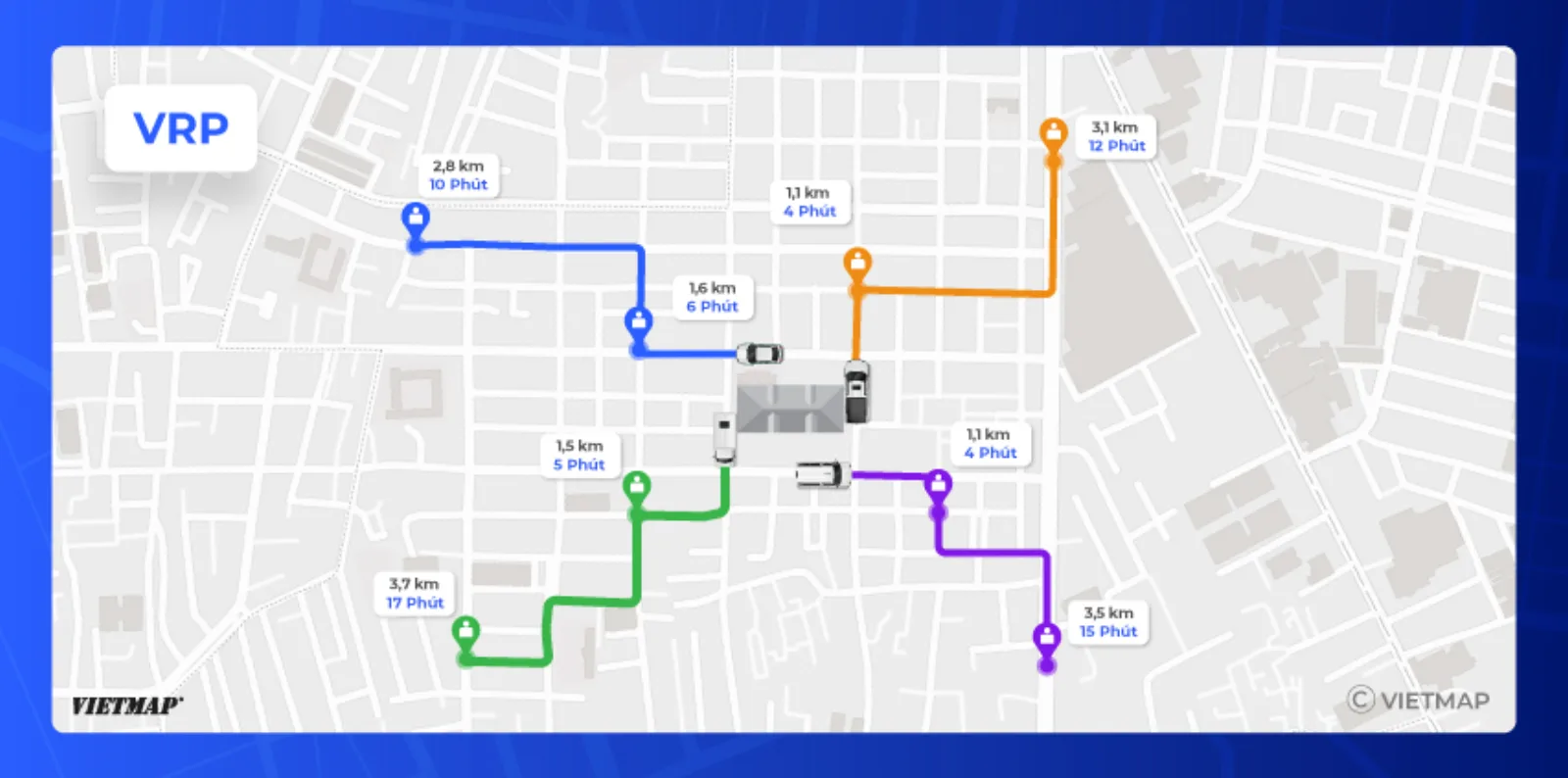

The Vehicle Routing Problem (VRP) is a type of optimization problem that involves finding the most efficient routes for a fleet of vehicles to travel to a set of destinations and return to their starting point while satisfying a number of constraints, such as capacity and time windows. The VRP is commonly used in transportation, logistics, and delivery applications.

A Vehicle Routing Problem (VRP) Maps API refers to a set of functions or tools provided by VIETMAP that help developers to solve the VRP for a given set of locations and constraints. These APIs may provide algorithms or heuristics for finding optimal or near-optimal solutions to the VRP, as well as visualization tools for displaying the resulting routes on a map. Developers can use VRP Maps APIs to create applications that help optimize fleet operations and delivery management, such as route planning, fleet tracking, and more.

URL

https://maps.vietmap.vn/api/vrp?api-version=1.1&apikey={your-apikey}

Method

POST

Parameters

Key Type Required Default Example Description
jobs array yes none array of job objects describing the places to visit
vehicles array yes none array of vehicle objects describing the available vehicles

Job Object (accept goods | release goods)

Key Type Required Default Example Description
id integer yes none 1 an integer used as unique identifier
location array, double yes none [106.112456,10.684922] coordinates array
service integer no none 1 job service duration (defaults to 0)
delivery array no none [1,2] an array of integers describing multidimensional quantities for delivery
pickup array no none [1,2] an array of integers describing multidimensional quantities for pickup
skills array no none [1] an array of integers defining mandatory skills
priority integer no none 1 Values: [0,10]. Range describing priority level
time_windows array no none [0,1400] an array of time_window objects describing valid slots for job service start

Vehicle Object (type of the vehicle)

Key Type Required Default Example Description
id integer yes none 1 an integer used as unique identifier
start array, double yes none [106.112456,10.684922] coordinates array
end array yes none [106.112456,10.684922] coordinates array
capacity array no none [0,3] an array of integers describing multidimensional quantities
skills array no none [1] an array of integers defining skills
time_windows array no none [0,14400] a time_window object describing working hours

Note

  • Key start and end are optional for a vehicle, as long as at least one of them is present.
  • If end is omitted, the resulting route will stop at the last visited job, whose choice is determined by the optimization process.
  • If start is omitted, the resulting route will start at the first visited job, whose choice is determined by the optimization process.
  • To request a round trip, just specify both start and end with the same coordinates.
  • Use amounts (capacity for vehicles, delivery and pickup for jobs) to describe a problem with capacity restrictions. Those arrays can be used to model custom restrictions for several metrics at once, e.g. number of items, weight, volume etc. A vehicle is only allowed to serve a set of jobs if the resulting load at each route step is lower than the matching value in capacity for each metric. When using multiple components for amounts, it is recommended to put the most important/limiting metrics first.
  • It is assumed that all delivery-related amounts for jobs are loaded at vehicle start, while all pickup-related amounts for jobs are brought back at vehicle end.
  • Use skills to describe a problem where not all jobs can be served by all vehicles. Job skills are mandatory, i.e. a job can only be served by a vehicle that has all its required skills. In other words: job j is eligible to vehicle v iff j.skills is included in v.skills.
  • In order to ease modeling problems with no skills required, it is assumed that there is no restriction at all if no skills keys are provided.
  • Useful in situations where not all jobs can be performed, to gain some control on which jobs are unassigned.
  • Setting a high priority value for some jobs will tend as much as possible to have them included in the solution over lower-priority jobs.

It is up to users to decide how to describe time windows:

  • Relative values, e.g. [0, 14400] for a 4 hours time window starting at the beginning of the planning horizon. In that case all times reported in output with the arrival key are relative to the start of the planning horizon;
  • Absolute values, "real" timestamps. In that case all times reported in output with the arrival key can be interpreted as timestamps. The absence of a time window in input means no timing constraint applies.
  • In particular, a vehicle with no time_window key will be able to serve any number of jobs, and a job with no time_windows key might be included at any time in any route, to the extent permitted by other constraints such as skills, capacity and other vehicles/jobs time windows.

Example

Body

{
    "vehicles": [
        {
            "id": 1,
            "start": [
                106.5983012,
                10.8879148
            ],
            "end": [
                106.5983012,
                10.8879148
            ],
            "profile": "bike",
            "time_window": [
                1685953800,
                1686418200
            ],
            "skills": [
                1,
                1000
            ],
            "breaks": [
                {
                    "id": 1000,
                    "time_windows": [
                        [
                            1685966400,
                            1685970000
                        ]
                    ],
                    "service": 3600
                },
                {
                    "id": 1,
                    "time_windows": [
                        [
                            1685986200,
                            1685988000
                        ]
                    ],
                    "service": 54000.0
                },
                {
                    "id": 2000,
                    "time_windows": [
                        [
                            1686052800,
                            1686056400
                        ]
                    ],
                    "service": 3600
                },
                {
                    "id": 2,
                    "time_windows": [
                        [
                            1686072600,
                            1686074400
                        ]
                    ],
                    "service": 54000.0
                },

                {
                    "id": 6000,
                    "time_windows": [
                        [
                            1686398400,
                            1686402000
                        ]
                    ],
                    "service": 3600
                }
            ],
            "speed_factor": 0.6
        },
        /// More objects should be add to here
        {
            "id": 7,
            "start": [
                106.7086064,
                10.814915
            ],
            "end": [
                106.7086064,
                10.814915
            ],
            "profile": "bike",
            "time_window": [
                1685953800,
                1686418200
            ],
            "skills": [
                1,
                7000
            ],
            "breaks": [
                {
                    "id": 1000,
                    "time_windows": [
                        [
                            1685966400,
                            1685970000
                        ]
                    ],
                    "service": 3600
                },
                {
                    "id": 5,
                    "time_windows": [
                        [
                            1686331800,
                            1686333600
                        ]
                    ],
                    "service": 54000.0
                },
                {
                    "id": 6000,
                    "time_windows": [
                        [
                            1686398400,
                            1686402000
                        ]
                    ],
                    "service": 3600
                }
            ],
            "speed_factor": 0.6
        }
    ],
    "jobs": [
        {
            "id": 1001,
            "description": "HOME",
            "location": [
                106.5983012,
                10.8879148
            ],
            "service": 0,
            "priority": 3,
            "time_windows": [
                [
                    1685986200,
                    1685988000
                ]
            ],
            "skills": [
                1000
            ]
        },
        {
            "id": 304,
            "description": "CO.OP FOOD NGUYỄN VĂN QUÁ",
            "location": [
                106.6287481,
                10.8362058
            ],
            "service": 1800,
            "time_windows": [
                [
                    1685948400,
                    1685980800
                ],
                [
                    1686034800,
                    1686067200
                ],
                [
                    1686121200,
                    1686153600
                ],
                [
                    1686207600,
                    1686240000
                ],
                [
                    1686294000,
                    1686326400
                ],
                [
                    1686380400,
                    1686412800
                ]
            ],
            "skills": [
                1
            ]
        },
        /// More objects should be add to here
        {
            "id": 337,
            "description": "CO.OP FOOD TỈNH LỘ 15-1031",
            "location": [
                106.513876765966,
                11.0885457429547
            ],
            "service": 1800,
            "time_windows": [
                [
                    1685948400,
                    1685980800
                ],
                [
                    1686034800,
                    1686067200
                ],
                [
                    1686121200,
                    1686153600
                ],
                [
                    1686207600,
                    1686240000
                ],
                [
                    1686294000,
                    1686326400
                ],
                [
                    1686380400,
                    1686412800
                ]
            ],
            "skills": [
                1
            ]
        }
    ]
}

Request body description

Vehicles

Parameter Type Description
id number The ID of the vehicle.
start array The starting location of the vehicle (longitude, latitude).
end array The ending location of the vehicle (longitude, latitude).
profile string The profile of the vehicle (e.g., "bike").
time_window array The time window during which the vehicle is available for service.
skills array An array of skills required for the vehicle to perform a job.
breaks array An array containing information about breaks for the vehicle.
speed_factor number The speed factor of the vehicle.

Jobs

Parameter Type Description
id number The ID of the job.
description string A description of the job.
location array The location of the job (longitude, latitude).
service number The duration of the service at the job location in seconds.
priority number The priority of the job.
time_windows array An array of time windows during which the job can be serviced.
skills array An array of skills required for the job to be performed.

Response

{
    "code": 0,
    "summary": {
        "cost": 12400,
        "unassigned": 0,
        "service": 196200,
        "duration": 12400,
        "waiting_time": 237145,
        "priority": 3,
        "distance": 109272,
        "computing_times": {
            "loading": 37,
            "solving": 61,
            "routing": 11
        }
    },
    "unassigned": [],
    "routes": [
        {
            "vehicle": 1,
            "cost": 12400,
            "service": 196200,
            "duration": 12400,
            "waiting_time": 237145,
            "priority": 3,
            "distance": 109272,
            "steps": [
                {
                    "type": "start",
                    "location": [
                        106.5983012,
                        10.8879148
                    ],
                    "arrival": 1685956255,
                    "duration": 0,
                    "distance": 0
                },
                /// More object will response here
                {
                    "type": "break",
                    "id": 6000,
                    "service": 3600,
                    "waiting_time": 177741,
                    "arrival": 1686220659,
                    "duration": 12400,
                    "distance": 109272
                },
                {
                    "type": "end",
                    "location": [
                        106.5983012,
                        10.8879148
                    ],
                    "arrival": 1686402000,
                    "duration": 12400,
                    "distance": 109272
                }
            ],
            "geometry": "ipmaA}|riSsAHGpB?\\ExC?l@CnBC`@OrAENK?EBCJ@FcBtBm@x@{B|CY^U`@GPG\\e@nCSp@uAlCWd@{C|F_AjBcAfB{AvCS^w@|A[j@Ub@INo@nAm@jAk@fAq@tAwBfEy@zAyAvCqAfCe@~@[j@c@z@mDxGs@vAOVw@dBw@xAi@fAOXs@rAKPyApCGLwA~CMXcUrNi@\\iHnEyBtAg[vRsCdBo[~RsCfB_CzA}BvAiC`BqBnAgEhCoMdIuAx@kNxIqAx@gAr@cDjBwDbCaF|CoBpA{@n@oAdAsCfCaDrC_FfEy@v@qApAc@f@i@t@g@r@w@~AQf@uGrP}IxUqFxNcBrEmB~EgCrGiCpGsAhDmDbJ{BpGwBtFkFhNgDzImC`H{@bBeCbE_BpCcAbBwDlG{FnJsDjGqH~LwFfJaC`EgDtFaEnHoAvCyBlFk@tAmAvCi@nA]v@eBfEeH~PwBxEgBpDgAzBaBhDqBbEmBzDkCzF_BbEwAbFoAfE{GnUSt@I`@w@fDOLKVoAfEc@lAM?MBQLELgAPaAg@eAk@eE_Cc@WqAu@uDsB_GcDaDeBuEkCwAu@}@i@kDkBkBeAy@e@aDcBcAk@uD{BgA`EgAfEfAgEfAaE_CsAqBgAcGeDQKmGkD}CcBtBuBTUlBkDfBcDbB{C`AcBl@}@NOVQ|BkAfDeBfD_B|C}AlDeBd@~@LIiB_EoEgJMYe@aAUc@{FsLqAcCoCyFwAaD[aAQy@WuAs@eE_@}Bc@iCc@mC]wBy@}E_@cC[oBi@_DMs@AKk@kDu@yEyA}IIk@CYAy@BSXmBXgBuBi@mAY{@QcAGkADyCReCNy@?}@IkAWs@GeD[iB]WSIMa@s@sAsCqAsCWc@KIUO[I_F{@qCiAgCgA{Ae@s@M_Eq@IGY]MSeAkCKSc@c@i@]{@m@kGwEgAs@c@W[MqLcDuA[cASwFi@oASyC]gC_@KEoBaAy@KkAAkILoE?]@wOLk@BQDkGhCyD|AyB|@mAj@_DpAkS~HcAh@_E~AoGjCqDxAgXzKsElB_G~BiMfFcEdBmAf@cCbA[LWHcKdEcBp@YLoHxCgFxBq`@~OwDxAgDvAwThJk@T[LqCjAsFrBiAd@}EtBkN~FcBp@qAj@c@Vo@`@kCnBqCpBuB\\u@NgA{AeE_HcBwBm@m@aFcE_DuCeFwFqA}AiKuPg@k@aCaC{D{DoCiCk@t@cA~@[VULmFfBw@Xo@TgBl@yBt@yMlEsGlB_Ct@uBl@kCh@cCl@eCj@m@LiEz@{Ev@q@JqG`AeDj@oDn@kDl@iAR^\\_@]hASjDm@nDo@dDk@pGaAp@KzEw@hE{@l@MdCk@bCm@jCi@tBm@~Bu@rGmBxMmExBu@fBm@n@Uv@YxDmAr@YTMZWbA_Aj@u@Xo@Va@hAaBlBeClHiJ`BmBtCsDnBiCb@g@d@_@bE{BxHmElBaAzB_AvIaDbAa@jHoCnE{AjJmDpCsAf@[d@a@jA_BpAqBfBgDtBqE|@gCn@cBr@aBv@cB|@kBlBqDfBcD~AsClE}HZg@zBoDNWxDkG|AkCj@gApB{DhAoBt@oAlBuDp@sAhAqB`C{DrB_DpCcEbBwCpAsBz@yAx@sApByCx@yAbCoDjAmB`EiGLS~CeFv@kAd@k@v@q@p@i@LOV_@x@wAFSFUD]Ac@]{DOmB?e@L{ALu@FOLQh@OlAQ`@GXKXOnCyCVSXITCT?d@Jp@\\bBpAXL`@N\\Df@@t@CrADvFP`@B~@HlEXhET`BJtCJf@BbFXv@Hx@JxIrAXDbFv@hANlFJ`IXrBFnBBrAHrAPpCb@dAHp@AnDSxAIzAKlAMl@M`LmEhH{CtCmA~@a@hBu@`EeBn@WbSiInCkAlEgBpAi@bCaA`Bk@|Bs@fCu@jBo@`H{BNGfA[vDgAjDiAlBm@zIoCfKcDpH_CxAc@dHyBdBi@pAa@pAa@xBw@`A]h@ObA[rAa@rAa@`Cy@bAa@~BsBvOwNfBaBvGgG~@_A~AwAlDcDdIkHzKgKdC}Bf@c@hC_Cn@m@RQnAgAd@e@`A_A`EsDvAsAzAwAhAeApCeCLMr@o@`B{AxCsCd@a@rF_FtBcB|E{DrAcArEuDnCwBhDkCt@c@jBy@p@[|@c@|CgBl@]pBgA|CgBrC_BdCuAz@i@@ArL_H~BsA|BsAhDuBLEb@?`AFTD`BXjBd@rA^fEhAl@Rz@^x@\\PJhAr@ZVRLPDZDZ@~@ClDc@fCGdE@rBB^BzE^`BNxIp@dE`@zFr@zCd@tIhApGv@pGz@hXrDpDh@lEh@~Ex@pANX@tEJpBBzLP`ABdBDtEJV@fCDpADhAFhBNhBRRBlALt@HxBTzAN^Dt@@rD@l@?|L@dVAl@ErCc@ZEfAOfBUp@ChAB~ATj@LdEhAtA^|Cx@b@LjDfAfGnBf@N`Bf@hA^NFjCx@t@VrBn@v@VfAZTD\\@|ABvED|A@nA@~@BDyC?]FqBrAInAIhDW~AMxAKrDYtBKz@FxANn@Dx@@VCVEb@Qn@U`DsA`@MdB_@NAl@?jE?rMB^F|Bl@La@b@{@r@mAJUh@{AVq@Jm@Hy@DiAFa@Pm@P_@vByDr@yA\\o@s@Ur@T]n@s@xAwBxDQ^Ql@G`@EhAIx@Kl@Wp@i@zAKTs@lAc@z@M`@dG|Ap@PzA^bHjB|@X\\J~DtAx@V~Ah@x@XJPzAaAFH`A`Bb@hAXvANnANzAJrA@f@EXKJc@Nn@fDT|AJzAHdBBX`@nA@JEP[r@CR@XRv@?TEx@Mz@qESS@IHGJ]zAMRGDWAwAYERDSvAXV@FELS\\{AFKHIRApER`ENV@xBDbBD`CHpDNrDLjFLj@?hAGfDQ`AUvAi@b@I`AMtF_@nBK`CKxAIfG_@v@AT?h@BvB^xAP`@BdBH`@Fj@N^Jv@VfBp@jBt@hA^XHhBf@fDtAl@\\}ApB]d@\\e@|AqBV[~@gA`AqA|BaDx@kAdAyARWlGwIf@u@r@aAj@s@zCsEfAyAVWjBgBdAaArEuEbA_AbAaA`@g@pAaCJOhAgBr@y@~AuBxAkB|AqBl@w@~@kAl@u@LOxAkB^e@tAgBp@_Aq@~@uAfB_@d@yAjBMNm@t@_AjAm@v@}ApByAjBsCnDgBkB_@[WOg@Se@QwAY}@EuCAmBL_A?gACy@Gy@IoBQa@IkAYsBi@OIeL~@c@FyALg@?kFu@yB]}AUs@KsBWsJyAUEWCuHmAmAQToALm@@Y?Q_@oAmAqBo@eAg@y@MSq@eAs@kAGIb@WrBqApCgBxBsAdEaCzJqFFH^t@GX@JdAfBLBLCr@a@fC{AhB}@VQ`Am@hCyALGZODCj@Y`DgBc@u@_@s@e@u@Sa@GIdMaHdE_CvAe@RM~EoC^SfBaArCyAbAe@NDP?REFENMFQBMC[IQMMQGYAy@w@]_@oC_DyAaBnBuA|DgCtDaC|CqBdAo@i@WF[GOYg@KO]aArA_@]mBBQmAwBVOf@_@dAq@TSRKP_@w@eAxBoApFmCJKP[F[`@mEH{@h@iGjADZ@~BJx@D@w@Ds@D]VuA^kBXFl@Jm@KYGk@KaBWs@MaAQq@Mk@IaBYsDo@KC_AMqAOq@Gm@G}C_A_AYkA_@iBk@yAe@iA]]Ue@c@c@_@aFeEk@e@q@m@USm@y@s@aAQSaAsA{@eAU_@]YQKm@_@iAm@}@g@}@g@|@f@|@f@hAl@l@^eIdMiAhBy@hA[b@o@nAYt@i@dBOt@QvAGf@cAlJE`@KZWr@SZe@b@g@XsAj@sDxAi@XkAp@aAv@_A|@_AhAa@l@{@~A_@~@c@Lm@Bs@g@a@P`@QkCeBeCeBK[IcBEyAG}B[_HCu@Y{DGCw@Im@O[Q_Au@uAmAw@q@YWw@s@wAoAyBkB{GyDkAzAjA{AkCqAi@Yo@[{@e@KEaB{@wAo@q@[SK[MqAi@w@Y_Bk@kC{@sAo@WIw@[qAe@cA_@UASGRFNNdA^BMNg@@[CuBKmBKmAm@oEAU@KH[T_@Zg@d@u@dAcBT_@zBeEYI{Aq@]OeAg@m@YCAc@UcCsAiAk@UK_@S}C}A{GgDyDoB{CqAcDsAgBq@}@]{@a@e@Wa@a@g@Oj@eIVmCoDFwFJkDHbACfBEOkEAq@MgDEuACyBAgAA_@Aw@AMM_@OWa@s@m@mAMo@EyAASq@_OMeDEcAEeBA}@SuP?OO{IKg@a@gBEYIeCBa@J{@V{ALa@X_@HMZaB?a@OsAa@uAIc@GcCEk@G]h@Ij@Il@Il@INAp@KNAjAOjBYT?Ra@H[?KC_@@YJyAC]EOGMMe@E_AE}@CmAT}ABU?QI[NMh@e@`@a@hAkApAuAFON[z@cAOMsAiAWUaAw@eDoCk@e@gAo@q@_@[Oi@YN]FG|Aw@zBcAhB}@r@_@BKGWg@qAaA}BWk@aAyBQ]QWOQGKc@cAkAcDOi@Me@q@}BcA{BOY_@yA??Ka@]L\\Mj@zBNXd@l@\\lAp@|BLd@Nh@jAbDb@bAFJNPPVP\\`AxBVj@`A|Bf@pAFVCJs@^iB|@{BbA}Av@GFO\\o@x@kAXaDl@{Bb@KFEH@TXl@FXH|@BfA?|CBxBJlCJfDZ`FB\\HbCBRTx@|@|BDRF\\Dj@FbCHb@`@tANrA?`@Ir@Ql@ILY^M`@WzAKz@C`@@fAF|@DX`@fBJf@Dh@HpH?NRtP@|@DdBDbALdDZlHTpEkH\\e@Hi@LmCz@mAb@sBp@DRHx@ZbCNn@j@fBX`BN`B{@@u@Cy@Mk@Mc@Kb@Jj@Lx@Lt@Bz@Al@AD|CJ~EAz@Kx@Cx@CTQz@Uj@GPKj@Gj@@JFJ?NCd@Kv@E\\rATJDVPb@\\LPTZRLjBf@BHCf@@FFHJBp@DETCv@Kx@?d@N@HBlAr@rAv@bAj@xChBdBdAXPb@ZfAf@IxAGbATF??VJnLhG~HvE|FdDrChBzBfANF{@~Ae@|@a@t@m@z@k@v@]|AWv@Yl@w@|Au@dBe@v@]j@[h@i@~@MRqAtBeBnDUlBIr@Kr@WzACNY~Ai@zCe@tCG~@s@Zq@^i@Z}BhA[PQTSd@cAbCmBaBL]M\\gByAq@k@_C{Ao@a@gCaBuAy@wA}@a@W{@g@_@Uk@]sBqAmCcBo@c@mCkBgC}AoA{@\\gA]fAUMeBoAKKi@i@e@_@e@]sA_AOMk@_@u@g@e@[OKo@e@oDcCm@_@OK}@o@gAu@oKiHm@_@GEcAs@wA_Aa@Ys@e@cH}EcDZmBZUDuAl@wAb@o@XqBjAWNy@b@Ua@Ya@YGu@CoAH{@Ro@J{@Jk@Js@RyCx@yCx@yCb@]Jq@PmAd@MWgBqD]u@\\t@fBpDLVLVvCrGl@rAh@jA^v@lDrHbD`Hn@pAd@dAzAbDrAvC`@v@t@pAl@bAj@|@lAjBFJbErGpApB`BjCrCtEl@~@n@bA`A|Az@tAXb@hAhBzBrDxA|B|BrDh@x@Vn@Hf@r@xDt@hEt@bEX|AV`Ah@vAjAjCzA`D`@`Af@rATfAt@vGBf@E~@GlCBlAFj@ThCT|ENpAL|@Tz@d@rAd@rAXl@JNa@`BGl@EXEnCAdAA`AMdCg@zDAd@Cr@rAI"
        }
    ]
}

Response body description

Parameter Type Description
code number A numeric code indicating the status of the response.
summary object An object containing summary information about the routes.
summary.cost number The total cost of the routes.
summary.unassigned number The number of unassigned items.
summary.service number The total service time for all routes.
summary.duration number The total duration of the routes.
summary.waiting_time number The total waiting time for all routes.
summary.priority number The priority of the routes.
summary.distance number The total distance covered by the routes.
summary.computing_times object An object containing computing times for different operations.
summary.computing_times.loading number The time taken for loading.
summary.computing_times.solving number The time taken for solving.
summary.computing_times.routing number The time taken for routing.
unassigned array An array containing information about unassigned items.
routes array An array containing information about each route.
routes[].vehicle number The ID of the vehicle associated with the route.
routes[].cost number The cost of the route.
routes[].service number The service time for the route.
routes[].duration number The duration of the route.
routes[].waiting_time number The waiting time for the route.
routes[].priority number The priority of the route.
routes[].distance number The distance covered by the route.
routes[].steps array An array containing steps of the route.
routes[].steps[].type string The type of step (e.g., "start", "break", "end").
routes[].steps[].location array The geographical location of the step (longitude, latitude).
routes[].steps[].arrival number The arrival time at the step.
routes[].steps[].duration number The duration of the step.
routes[].steps[].distance number The distance covered during the step.
routes[].geometry string The geometry of the route.
